Note: Ductile iron valve body.
Note: Equipped with Jacklong floating ball valve.

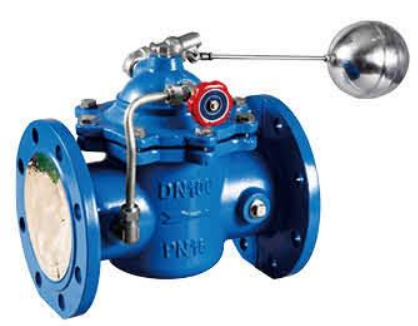

Product Overview:
This valve consists of a main valve and an externally mounted pilot valve.It utilizes a float that responds to liquid level changes in the water,actuating the pilot valve to control the opening and closing of the main valve,thereby keeping the water level in reservoirs(tanks) and water towers within a specified range,preventing overflow and excessively low water levels.This valve is suitable for automatic water supply systems in various reservoirs(tanks) and water towers in industrial,mining,and civil construction applications,as well as for circulating water supply systems in atmospheric pressure boilers.The main valve opens quickly and closes slowly,eliminating water hammer,and features tight sealing with no risk of flooding.

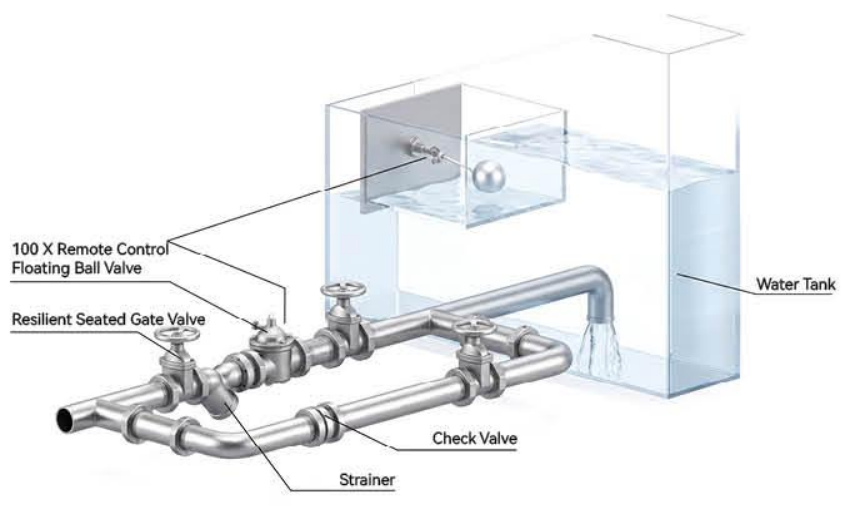

Installation Diagram:
Maintenance Troubleshooting:
Disassembly of the Main Valve:
(1)Remove the external piping and control valve.
(2)Loosen the nuts diagonally,screw in the jacking screws,remove the valve cover,and take out the spring.
(3)Unscrew the valve stem stop nut,and remove the diaphragm pressure plate and diaphragm.
(4)Remove the valve disc,rubber seat pressure plate,and large O-ring.
(5)Loosen the valve seat counterclockwise and remove the asbestos gasket.
Troubleshooting and Corrective Actions:
|
Fault Phenomenon
|
Fault Cause
|
Remedy
|
|
Water tank overflow
|
Pilot valve rubber gasket damaged
|
Replace gasket
|
|
Float weld seam leaking
|
Replace float
|
|
Connecting rod piston blocked by foreign matter
|
Remove foreign matter
|
|
Water level too low
|
Debris inside pilot valve body
|
Remove debris
|
|
Connecting rod piston blocked by foreign matter
|
Remove foreign matter
|
|
Abnormal noise
|
Debris inside main valve body
|
Remove impurities
|
|
Improper closing speed
|
Adjust needle valve opening
|
