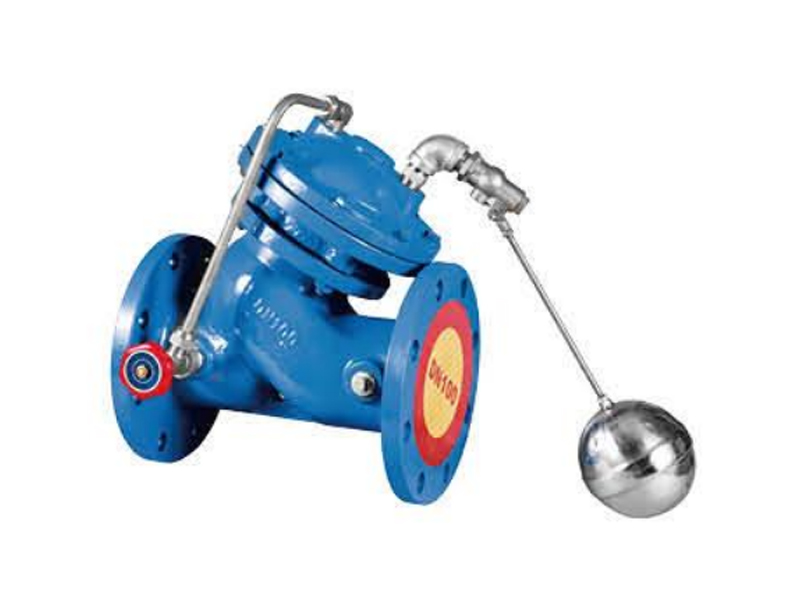

F745X-10/16

Product Overview:
Installed in the inlet pipelines of reservoirs and water towers.When the water level reaches the preset level,the valve automatically closes;when the water level drops, the valve automatically opens to replenish water.


Product Features:
1. Tight and reliable closing.Utilizes a robust O-ring seal and hydraulic control principles, making the sliding disc closing force proportional to the inlet water pressure,ensuring high sealing reliability.
2. Large flow capacity.The valve body features a full-bore streamlined design, resulting in low fluid resistance and large flow capacity.
3. Safe operation.Operated hydraulically,it automatically controls the liquid level in water towers or reservoirs with high accuracy.
4. Easy maintenance.The main valve is installed outside the reservoir,facilitating convenient commissioning,inspection,and simple maintenance.

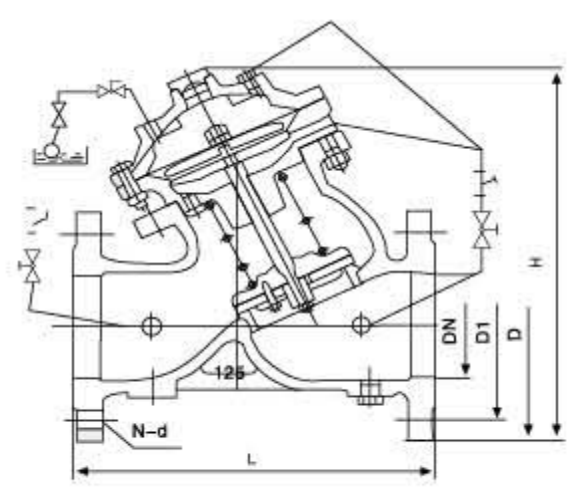

Installation Diagram:
