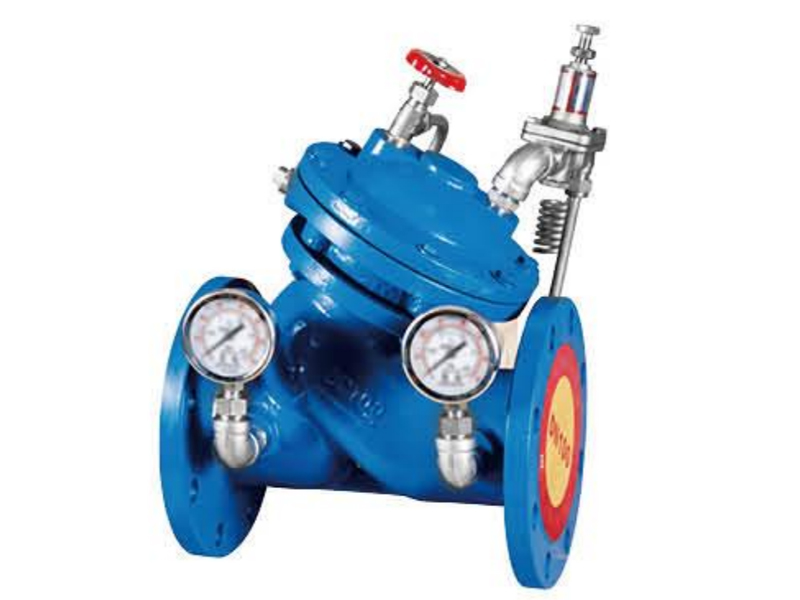

YX741X-10/16

Product Overview:
Installed on pipelines in high-rise building water supply systems and other water supply systems to reduce higher upstream pressure to the required downstream working pressure.


Product Features:
1. Reliable pressure reduction.The outlet pressure is not affected by changes in inlet pressure or flow rate;it can reduce both dynamic pressure and static pressure.
2. Easy adjustment and operation.Simply adjust the pilot valve's adjusting screw to obtain accurate and stable outlet pressure.
3. Energy efficient.The valve body features a full-bore streamlined straight-through design,resulting in low pressure loss,large flow capacity,as well as compact size and light weight.

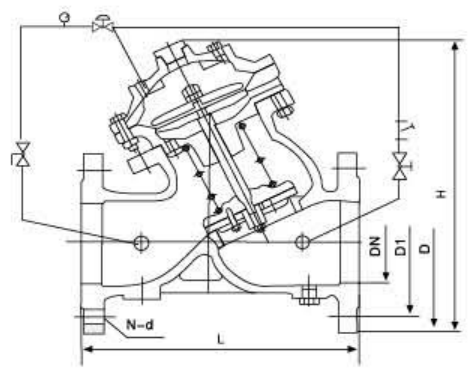

Installation Diagram:
