Product Overview:

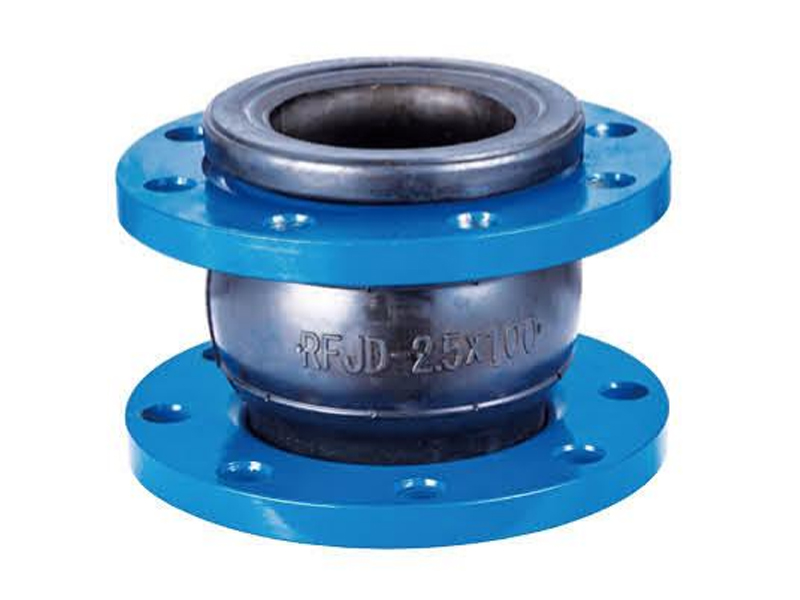

The KXT rubber joint is a type of rubber connector,also known as a rubber flexible joint or rubber vibration-damping joint.It is composed of a rubber body and two flanges, manufactured through a special process using the air-blowing molding technique, followed by high-temperature vulcanization.It is widely used in the connection between pumps and pipelines in various fluid transfer applications,such as pumping stations,
pump rooms,heating,air conditioning,and ventilation systems.It can elongate,compress, and offset in position,effectively preventing pipeline damage caused by foundation settlement.

Product Features:
1.The single-sphere rubber joint offers good elasticity and a long service life,with strong adaptability especially in harsh installation environments.
2.When installed on pipelines,it can compensate for axial,lateral,and angular displacements,ensuring safe pipeline operation and extending the service life of the pipeline.
3.It provides excellent vibration reduction and noise attenuation,significantly improving the operating environment of the pipeline system.
4.It prevents static electricity,thereby avoiding potential accidents.

Main Parts Materials:

NO.	Part Name	Material
1	Body	Polar rubber
2	Inner Liner	Nylon cord fabric
3	Skeleton	Hard steel wire
4	Flange	QT450,cast steel

Parameters:

Size(DN)		50	65	80	100	125	150	200	250	300	350	400	450	500
Valve Length(mm)		105	120	135	150	165	180	210	230	240	255	255	255	255
Test Pressure(MPa)	Shell	1.5-2.4
	Sealing	1.1-1.76
Nominal Pressure(MPa)		1.0-1.6
Applicable Temperature		0-80℃
Applicable Medium		Water and Weakly Corrosive Fluids
